Wide range of products- Plant specializes in production of drilling and auxiliary equipment for mining and tunneling.We produce metal constructions of any difficulty according to the draft or technical tasks of the customer.
High quality of products- There products are known in many countries of the world. Ots high quality is confirmed by its successful operation in Ukraine, Russia and Kazakhistan, Mongolia, India, Iran and Vietnam, Bulgaria, Czech Republic and in many other countries.
Customer focus- Plant provide complete aftersale equipment servicing, including training of customer’s by the method of installation, operation, maintenance and repair. If there is a need our specialist will advise you on the choice of drilling equipment, selection of drilling tools, spare parts, they will control assembly operations as well as adjustment of the equipment while it is put into operation.
Timely delivery-Due to its favorable geographical position the plant can ensure timely delivery of its products to customer from CIS, Europe and Asia.
Types of Drilling

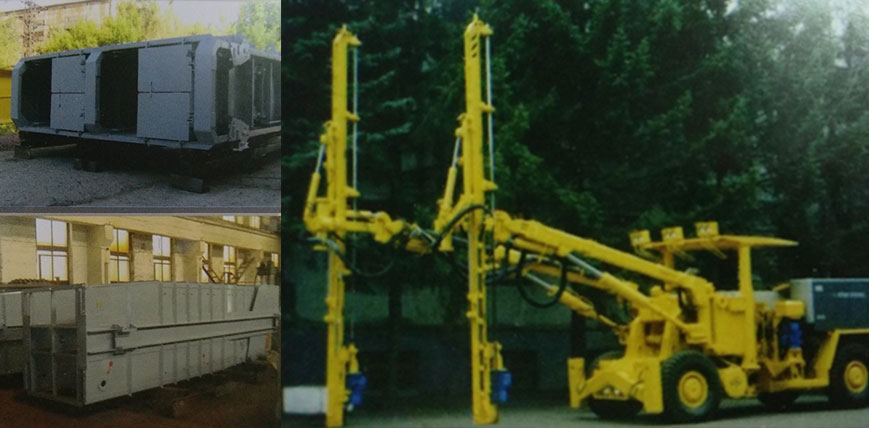

| Drilling Rigs C-250 MHA-32 & YC-250A | Jumbo Drill Y236 | Jumbo Drill Y501AK | Drill Jumbo Y312A | Drill Jumbo Y501A | Drilling Rig HKP100M | Line Drilling Rig YC1 | Drill Head YC1.01.0000 |
|---|---|---|---|---|---|---|---|
| They are designed for drilling blast holes using rock bits of 253 through 269mm diameters.In open pits depth of drilling may reach 32 meters.Design of rigs makes them easy and conenient as to operation and maintenance. | These drills made for drilling front holes 38 to 51 mm in diameter, 2.4m in depth in horizontal mine works with section of 6-13m, not dangerous when comes to gas explosion and dust. Advantages of the drill are- simplicity of the machine, easy to control & service, increased quality if the units. | This jumbo rig is designed for rotatory drilling in soft rock.It is two deeper, rubber-tired with diesel motor device. Drill blast holes in vertical opening (from bottom to top) and lateral opening (slightly inclined). | This jumbo rig is designed for impact drilling. It has two deep with pneumatic drilling heads. Drills blast holes in mine tunnels having cross-section of9 through 32 square meters. | This jumbo rig is designed for impact drilling. It has three deep with pneumatic drilling heads. Drills blast holes in mine tunnels having cross-section of 16 through 65 square meters. | These drilling rigs are intended for drilling in any direction up to 50m with the underground conditions. Rigs perform drilling in medium rock using pneumatic striker. Rigs can be used for drilling of degassing and drainage holes and for other works. | This Rig is designed for line drilling of vertical and horizontal holes in gas & dust blastproof quarries in hard rocks. These rig drills hard rocks in conditions of moderate climate. | Pneumatic drilling is installed on the feeding devices for drilling holes of 85mm diameter and 15 m deep in hard rocks of hardness to 20 units. |
Types of Mining Equipments
| Mining Cages | Mining Skips | Mining Counterbalance |
|---|---|---|
| They are made for people downtake-raising, transportation of empty and loaded trolleys, delivery of materials & equipment along vertical shafts at one end mutlicable raising in the process of under ground output of minerals at mineral industry enterprises. | They are made for delivering mining rock to the surface along the vertical shafts at one and multicable raising in the process of underground output of mineral at mineral industry enterprises. | They are made for balancing cages and skips at one and multicable rising in the process of under ground output of minerals at mineral industry enterprises. |
Some Other Types
- Hoppets- It’s a metal container of cylindrical shape with shoulders and ear fastenings.
- Doser – Its used for measuring coal, rock and mining mass while loading vertical shaft skips.

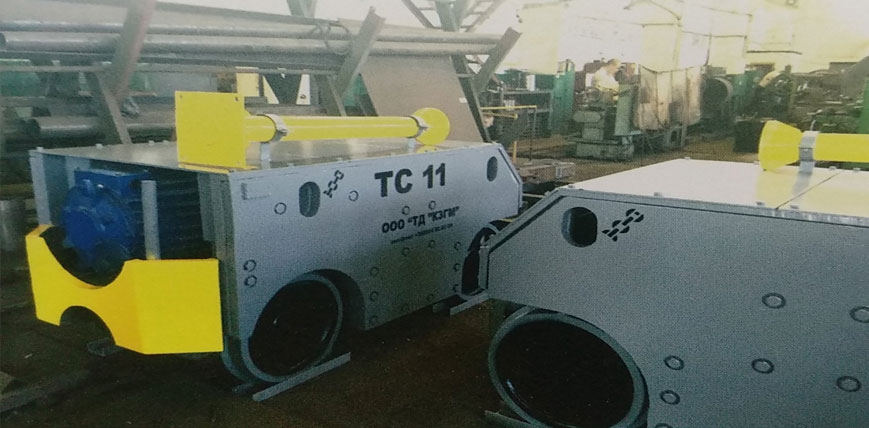

- Self- moving pusher of TC type- Pushers TC5, 5, TC 11 are made for forced moving of trolleys while changing in cages on reception points and by the tipping devices, as well as for pushing trolleys to doubling yard at bottom pits.
- Pneumatic forging machine- Multipurpose pneumatic forging machine is deigned to cut a hexahedral steel of drilling rods, make shank collars, align rods & calibrate shanks for drills.

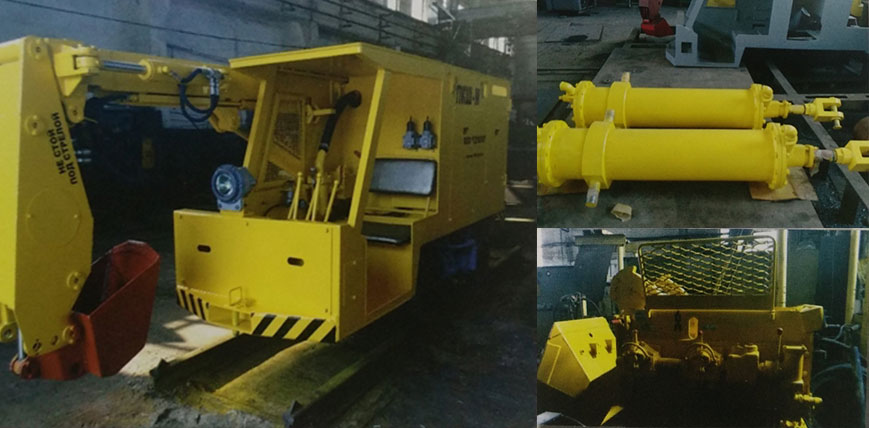

- Loading machines- Pneumatic, wheel-rail loading machines of periodical action of direct load is intended for loading blast rock into transport vehicles in horizontal opening of underground mining of mineral resources.
- Bucket loader underground- It is designed for mechanization of the loading process of rock while making and cleaning water diversion ditches, located along the rails track while cleaning mining workings from embankment in the process of holes driving.
- Piston engine pneumatic- They are designed for drive of movement oil-stations bucket loader.
- Raising mechanism drive- Pneumatic engine which is intended for the bucket lifting of the loading machines.
- Pneumatic cylinders- Are the most often used construction in pneumatic systems :-
- Unilateral pneumocylindricals- the supply of the air in them is done to fulfill working stroke in one direction, used in rejectors, stopping mechanisms, holding construction and others.
- Bidirectional pneumocylindricals—useful work is done by them both in the direct and return piston stroke. They are used in the case when it is needed to give the working stroke at liner movements in both directions.
- Hydraulic cylinders- They are designed for open air and mining operations at temperature ranging from -60C to +45 C, on pure mineral oil operating pressure up to 160 Atm. These cylinders are manufactured both with integrated hydraulic lock and without it.
